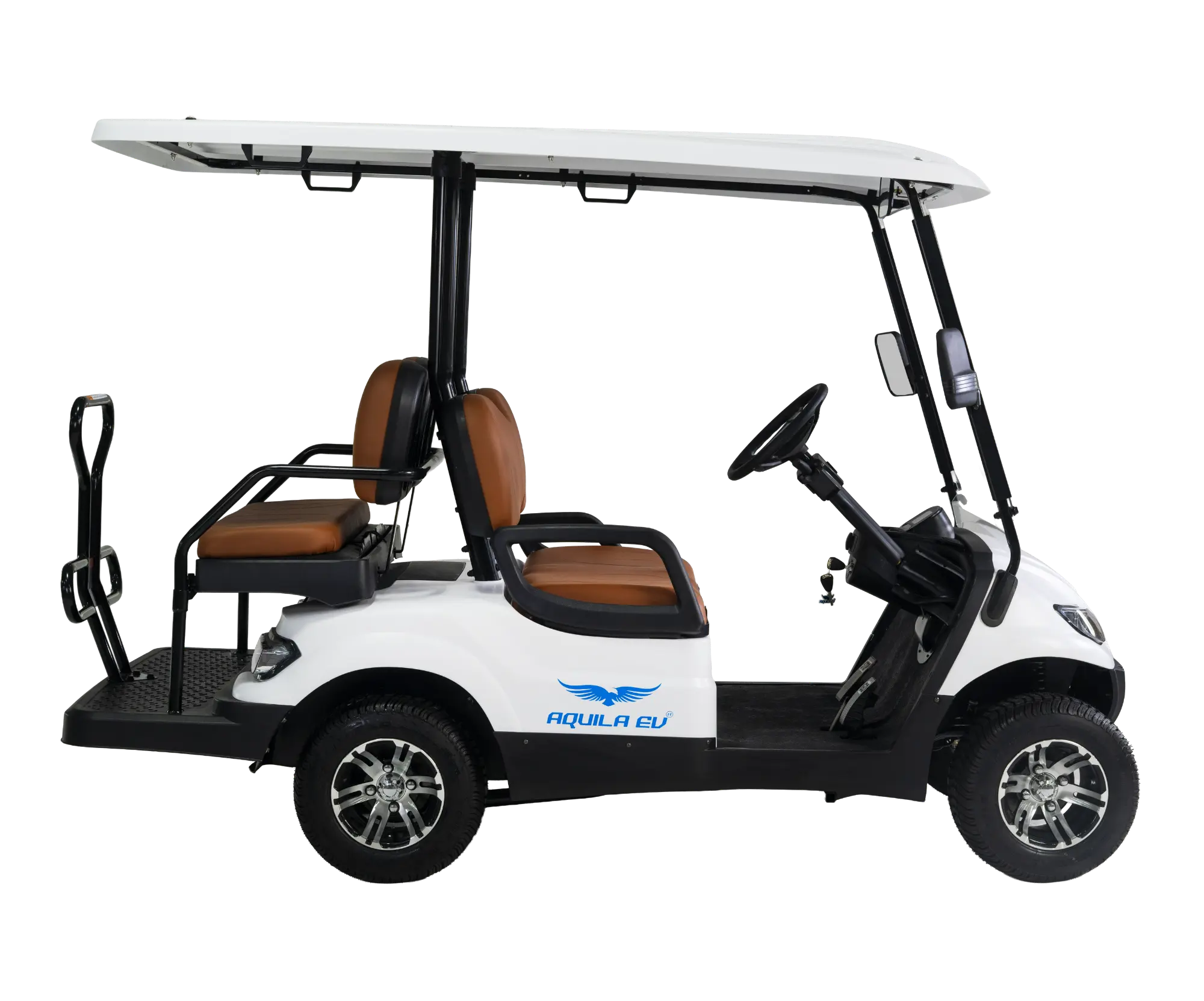

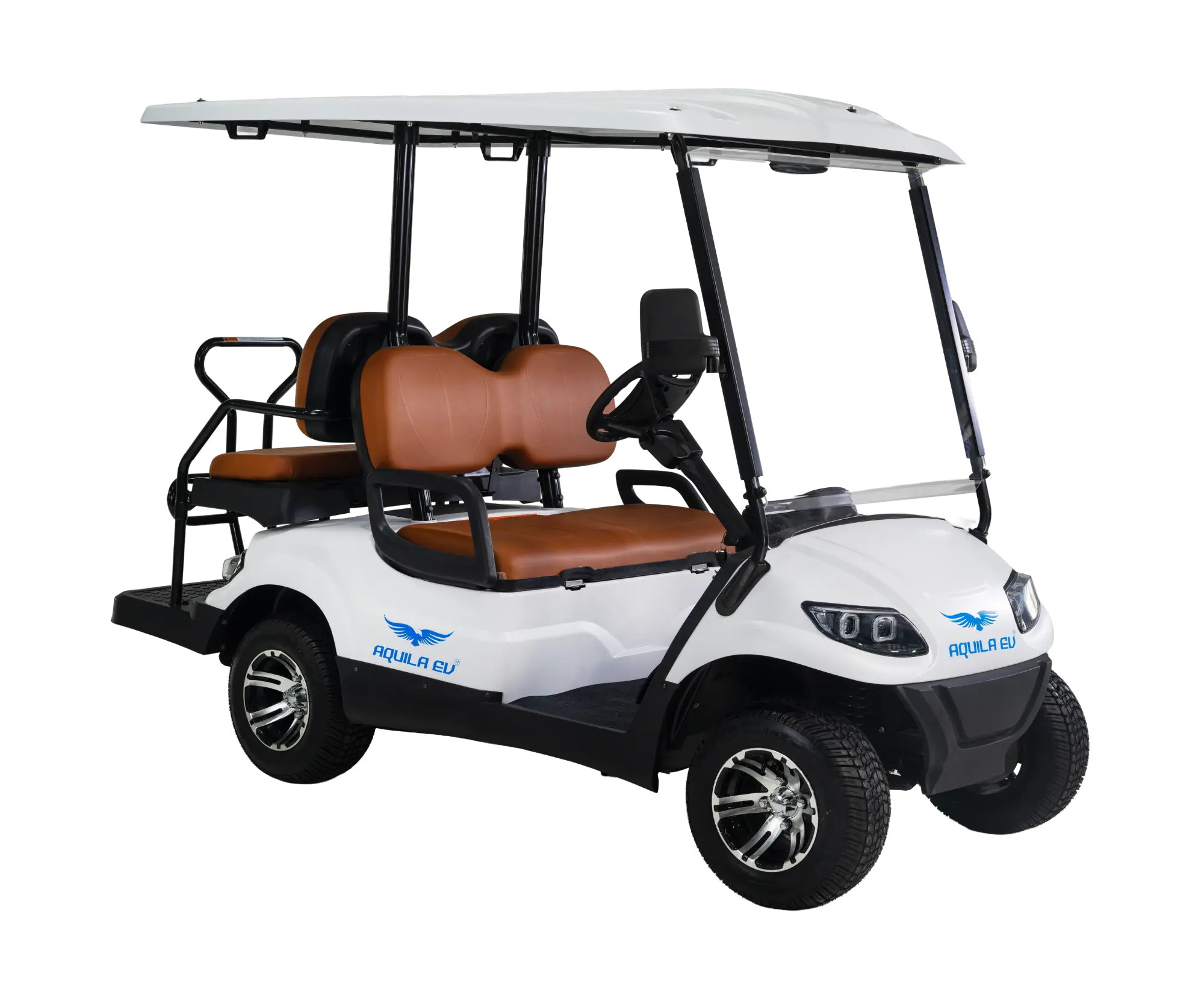

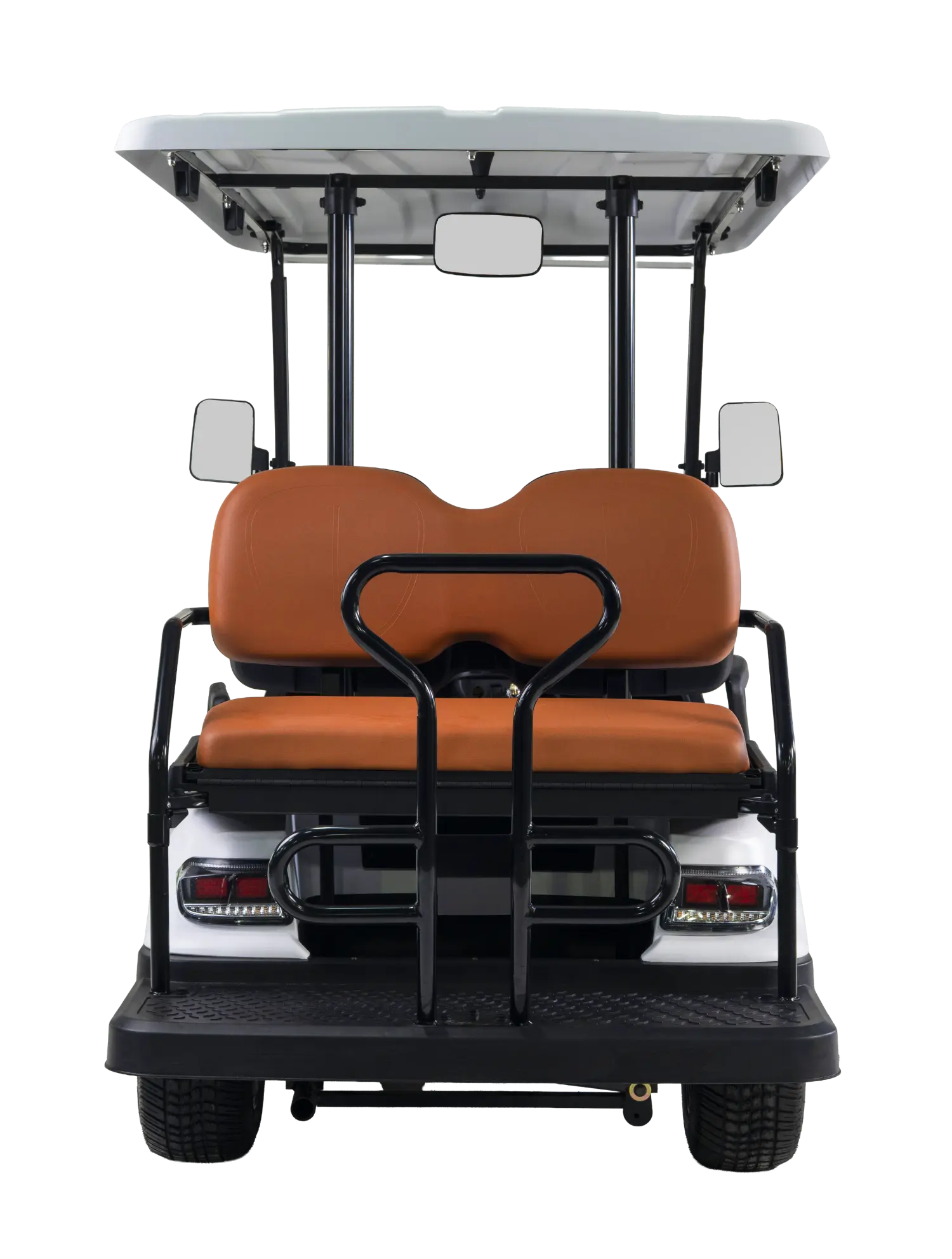

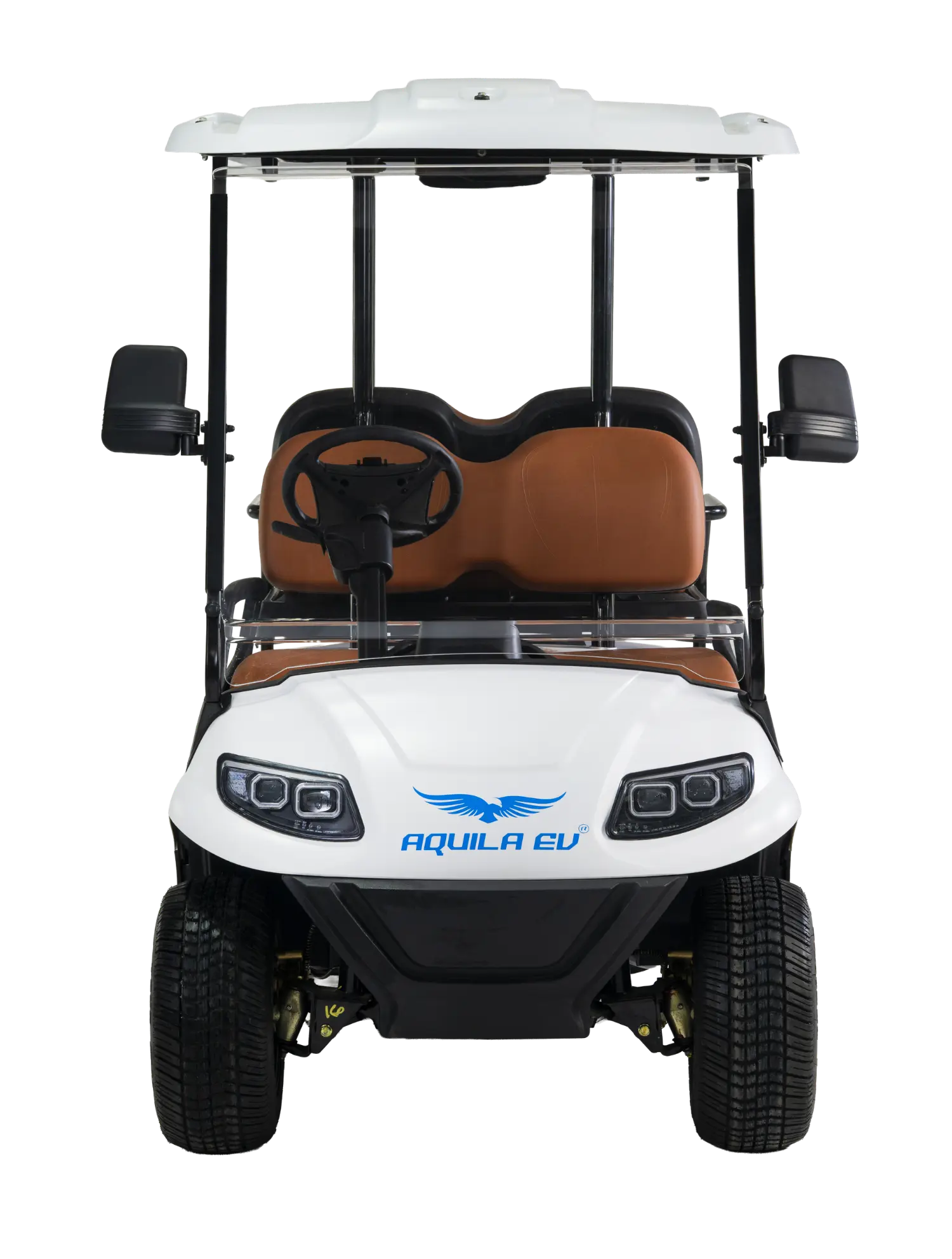

TE-A2+2 - 4 Seater People Mover

The A2+2 is a sightseeing golf cart that is used extensively as a general-purpose people mover in gated communities, caravan parks & lifestyle resorts, theme parks, hotels, airports and industrial complexes. Accommodating of 4 adults in comfort, the A2+2 provides efficient, long-lasting and well-grounded transport. It is equipped with high quality of parts that gives a comfortable and good-looking environment.

Outstanding Specifications & Exceptional Warranty*

Based on advanced German engineering and design all our models feature the industry's leading U.S.A. and European brand electrical and mechanical components and are backed by an exceptional warranty

2 years on motor and controller
2 years gear box

Specifications: TE - A2 + 2

Operating Voltage	48V
Battery	Lead acid (or) Lithium
Motor	4kW AC Motor
Controller	48V/350A AC Controller
Charger	Intelligent smart charger with auto cut-off technology

Passenger Capacity	4 including driver
Seating Orientation	2 front facing + 2 rear facing
Range	Customisable
Max Speed	30 kmph
Maximum Turning Radius	< 4m
Braking Distance	< 3m

Dimensions	2730 x 1200 x 1900 mm
Minimum Ground Clearance	110 mm

Steering System	Rack and Pinion type - Right hand drive
Braking System	Four wheel brake system - Front hydraulic disc brakes + rear hydraulic drum brakes + hand operated parking brake. Electric braking system - Automatic slowdown/prevention of rollback on slopes.
Accelerator	Electronic accelerator
Front Suspension	Helical coil spring with hydraulic shock absorbers on both sides
Rear Suspension	Helical coil spring with hydraulic shock absorbers on both sides
Tyre size/Wheel size	205/50-10 tyres - 10 inch alloy rims with steel cut finish
Chassis	Seamless ladder type high tensile tubular steel with anti corrosive, electro deposited epoxy base coating for rust prevention
Body	ABS 747 injection molded P.P.Panels infused with automotive grade U.V. resistant gloss color finish, Rooftop using high quality FRP
Windshield	Acrylic windshield with scratch prevention coating
Seat Materia	Artificial leather seats with high quality foam cushions
Dashboard	Digital instrument cluster, Forward/Reverse Switch, Indicator Switch, Headlight switch, Battery display indicator

Outside Rear view mirrors, Side indicator, Headlights, Taillights, Fire Extinguisher, Emergency stop button, Basic tool kit, Jack, Operation manual, Roof handles, Reverse buzzer, Horn, Spare Key

Rain cover, Dust cover

TE-A2+2 - 4-Seater electric golf cart

The TE-A2+2 4-seater electric golf cart buggies are designed to comfortably transport up to four people, front facing 2 people and rear facing 2 people. It features a cutting-edge steering column that integrates lights, indicators, and a horn, enhancing ease of use and comfort. The TE-A4 offers efficient, dependable, and long-lasting transportation, ensuring a comfortable travel experience for four passengers.

Superior Performance and Technology

Powered by a 48V lead-acid or lithium battery, the TE-A4 electric buggies deliver optimal performance and efficiency. Its 4 kW AC motor, combined with a 48V/350A AC controller, ensures smooth and quick responses, facilitating efficient operation across campuses. The intelligent smart charger with auto cut-off technology prevents overcharging, saving the power consumption.

Durable and Comfortable Design

Crafted with leather-synthetic seats, the TE-A4 provides exceptional comfort. The PP Body and FRP roof support enhances its durability and grip. The powerful AC motor paired with the advanced AC Premium Controller allows maximum speed of 30 km/h, ideal for quick navigation within campus environments. The ground clearance of 110 mm allows it to tackle uneven surfaces effortlessly, and the compact design with a turning radius of less than 4 meters enables easy maneuverability.

The hand-operated parking brake and automated roll-down prevention system are particularly useful in hilly areas, making the TE-A4 an excellent choice for varied terrains. Additionally, the electronic accelerator balances performance and efficiency, optimizing movement.

Dimensions and Enhanced Comfort

The dimensions of the TE-A4 electric buggy car are 2730 in length, 1200 mm in width, and 1900 mm in height, making it practical and spacious enough for four people. The buggy's premium suspension system, featuring helical coil springs and coil shock absorbers on both front and rear axles, effectively absorbs vibrations, ensuring a smooth ride even on uneven campus grounds.

Robust Build and Eco-Friendly Operation

The TE-A4 boasts a durable ladder-frame chassis made from high-tensile PP and FRP enhancing structural rigidity and load-carrying capacity. It features a corrosion-resistant coating, an ABS 747 body, and UV-resistant fiber-reinforced plastics. The four-seater electric car is equipped with an acrylic windshield with a scratch-prevention coating and a dashboard with digital instruments.
